General

Device Interfaces

• 802.11ac/n/g/b/a Wireless LAN

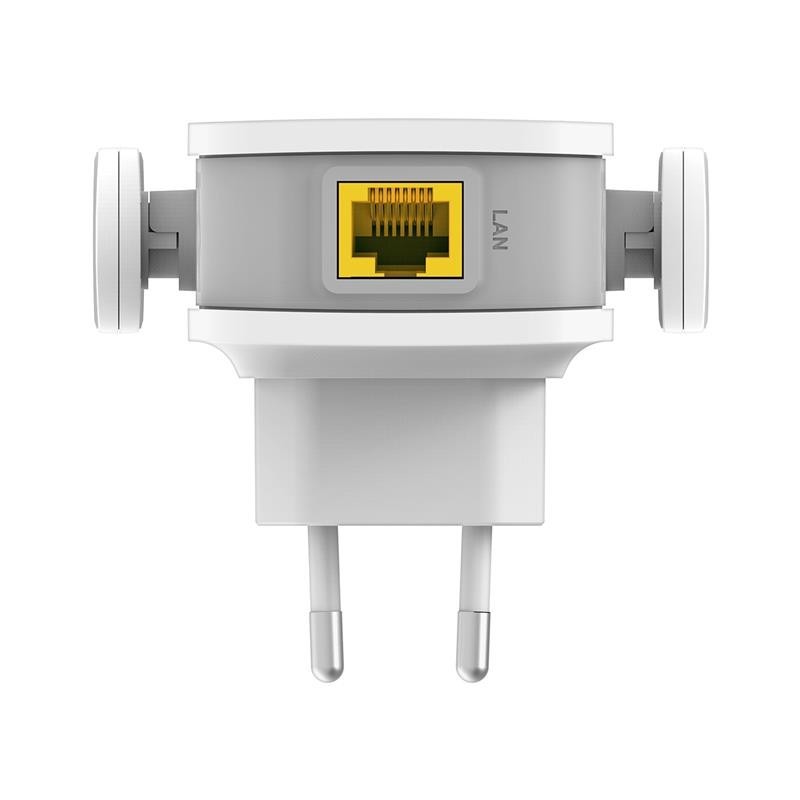

• 10/100 Mbps Ethernet Port
• Reset Button
• WPS Button

LEDs

• Status/WPS
• 3 Segment Wi-Fi Signal Strength Indicator

Standards

• IEEE 802.11ac
• IEEE 802.11n
• IEEE 802.11g
• IEEE 802.11b
• IEEE 802.11a
• IEEE 802.3ab

Antennas

• Two external antennas

Data Signal Rate

• 2.4 GHz
  • Up to 300 Mbps¹
• 5 GHz
  • Up to 866 Mbps¹

Functionality

Wireless Security

• Wi-Fi Protected Access (WPA/WPA2)
• WPS (PBC)

Advanced Features

• D-Link One-Touch Extender Setup

Device Management

• Supports QRS Mobile app for iPhone, iPad, iPod touch, and Android mobile devices
• Web UI

Physical

Dimensions

• 97.9 x 50.7 x 48.7 mm (3.85 x 2.00 x 1.92 inches)

Weight

• 120 grams (4.23 ounces)

Power

• Input: 110 to 240 V AC, 50/60 Hz

Temperature

• Operating: 0 to 35 °C (32 to 95 °F)
• Storage: -20 to 70 °C (-4 to 158 °F)

Humidity

• Operating: 10% to 90% non-condensing
• Storage: 5% to 95% non-condensing

Certifications

• FCC
• IC
• CE2
• UL
